Omega2 Wireless LiDAR Kit

$199.00

OM-K-LIDR

Onion’s wireless LiDAR solution offers a new indoor 360˚ 2D LiDAR scanner that uses rotating laser ranging to measure and map exact distances to indoor surroundings. For the first time, users can seamlessly integrate a wireless and mobile LiDAR unit with a full workstation through the Omega2’s wireless connectivity.

Connecting Onion’s 360˚ 2D LiDAR unit to the Omega2 allows for the transmission of raw data to any computer in the local network. This wireless LiDAR solution allows users to take full advantage of powerful visualization and navigation software while their untethered LiDAR unit is deployed in the field in real time. Software included in the kit uses raw scan data to produce a 2D 360˚ visualization of the LiDAR’s surroundings up to 8 meters away.

Only 4 left in stock

Description

Thanks to the Omega2, the kit enables the active transmission of the LiDAR USB signal over WiFi. This wireless integration allows for any computer on the local network to connect to the LiDAR unit as if it were physically plugged in. You can deploy your LiDAR scanner in the field while receiving real-time data on your workstation!

What’s Included

  • Omega2+
  • Power Dock 2
  • 360˚ LiDAR Scanner
  • LiDAR control board
  • 2x MicroUSB cables



LiDAR specifications:

  • Performs 2D 360˚ scans
  • Up to 5000 samples/second
  • A range of 8 meters



The LiDAR Scanner uses Laser technology and complies with FDA Class I standards. It is non-hazardous to human eyes.

The Omega2 Wireless LiDAR Kit connected and actively scanning:

* LiPo battery and USB battery not included



The included Windows LiDAR Visualization software:





How to Use This Kit

See the full online Quickstart Guide for all details!

Since LiDAR uses pulsing laser light to determine distance, operating in direct sunlight may affect the accuracy of the measurements. Warning: Prolonged exposure to direct sunlight may damage the light sensor!

LiDAR Scanner Details

Range
0.2Meters ~ 8 Meters
Sample Rate
5K/Sec
Scan Rate
4 ~ 10 Rotation/Sec
Laser Wavelength
780nm
Laser Power
3mW (max)
Distance Accuracy
~1%@8m
Resolution
0.25mm
Communication
UART (3.3V TTL)
Rated Power
(Inc. Motor)
2.5W
Voltage
Measurement Circuit: DC 5V
Motor Driver: DC3.3V
Boot Current
600mA
Running Current
500mA
Size
108mm * 76mm * 51mm
Weight
185±2g
Operating Temperature
0 ~ 45°C
Operating Humidity
< 90%
Optimal Environmental Light Conditions
< 1000 lux

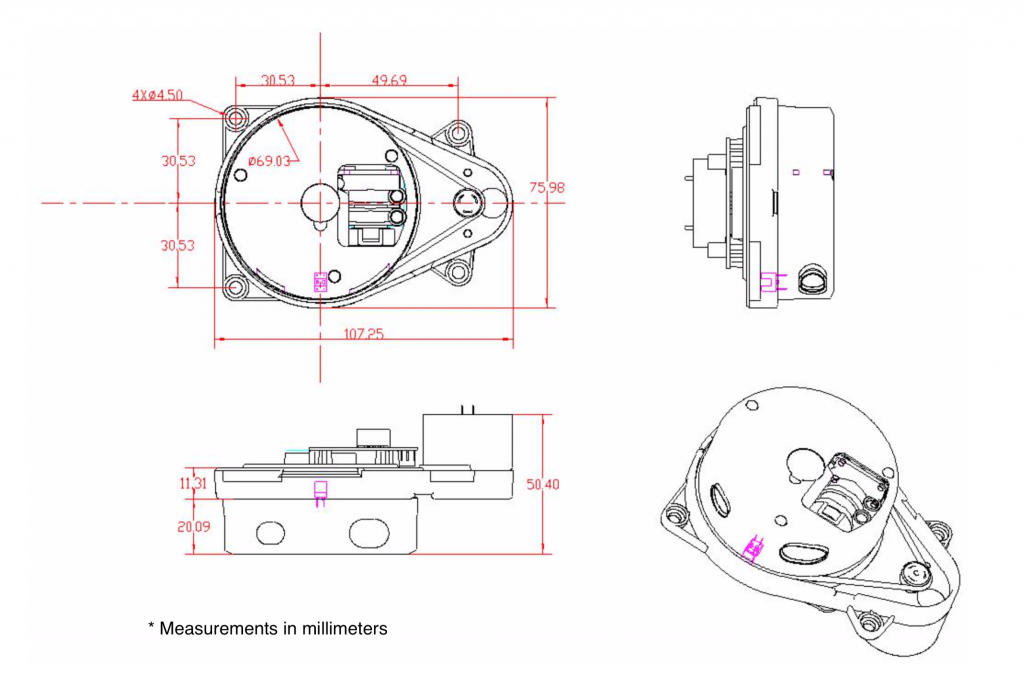

LiDAR Scanner Dimensions

Additional Resources

See the online Quickstart Guide for info on how to get started.

See our Omega2-Lidar-Kit repo on GitHub for more resources:

  • LiDAR Specifications – Dimension diagram and Protocol Guide
  • Installation scripts used in the Quickstart Guide
  • Example code to interpret the LiDAR data
  • Windows LiDAR visualization software

Additional information

Weight 0.46 kg
Dimensions 17.5 × 11.4 × 9.4 cm
